10-28-2015 03:19 PM  3 years agoPost 41
buster1

rrKey Veteran

Manhattan, NY

My Posts: All  Forum  Topic

cool!!!

PM  EMAIL  GALLERY  Attn:RR  Quote
10-28-2015 06:42 PM  3 years agoPost 42
don s

rrElite Veteran

Chesapeake, VA

My Posts: All  Forum  Topic

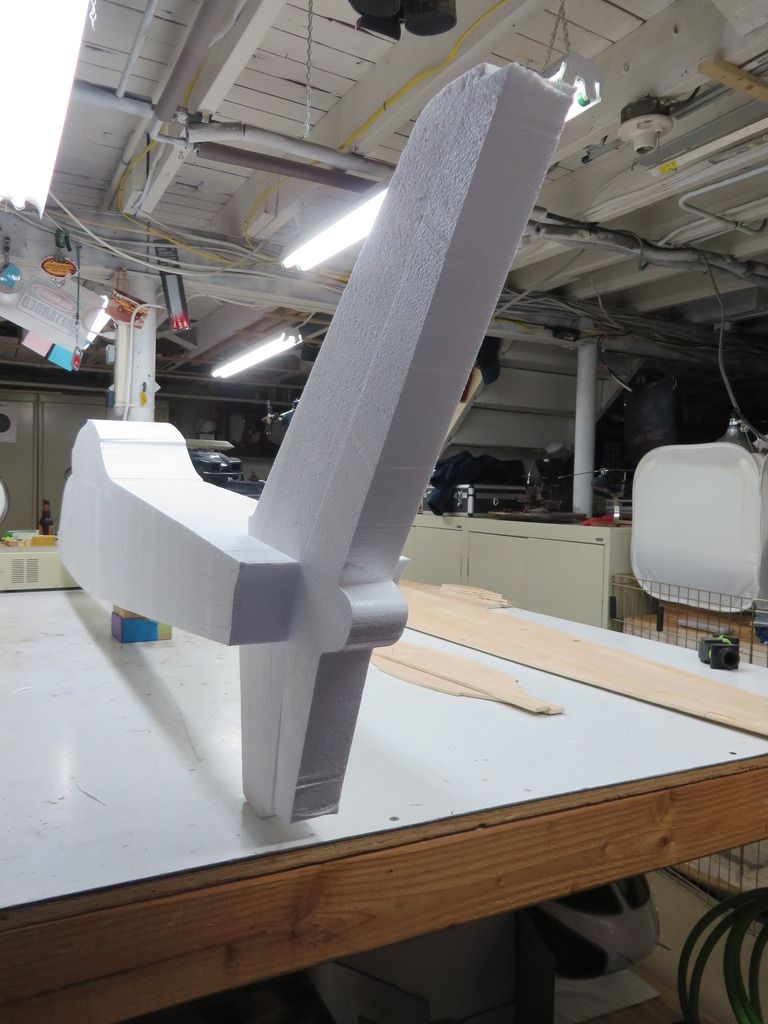

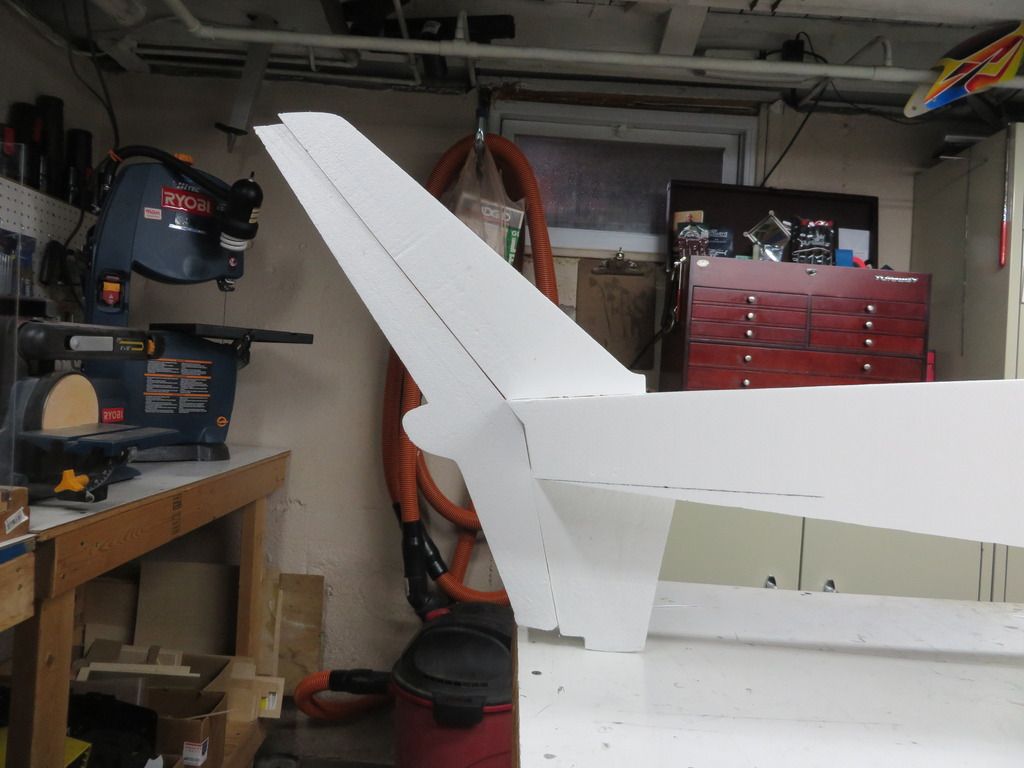

My bad, I meant how did you remove the tail from the wood template? The cuts are so thin and straight.

E820, Raptor G4N, X50F/E, E620, Forza 450, and some planks.

PM  EMAIL  GALLERY  Attn:RR  Quote
10-28-2015 06:51 PM  3 years agoPost 43
bwellmaker

rrKey Veteran

Long Island

My Posts: All  Forum  Topic

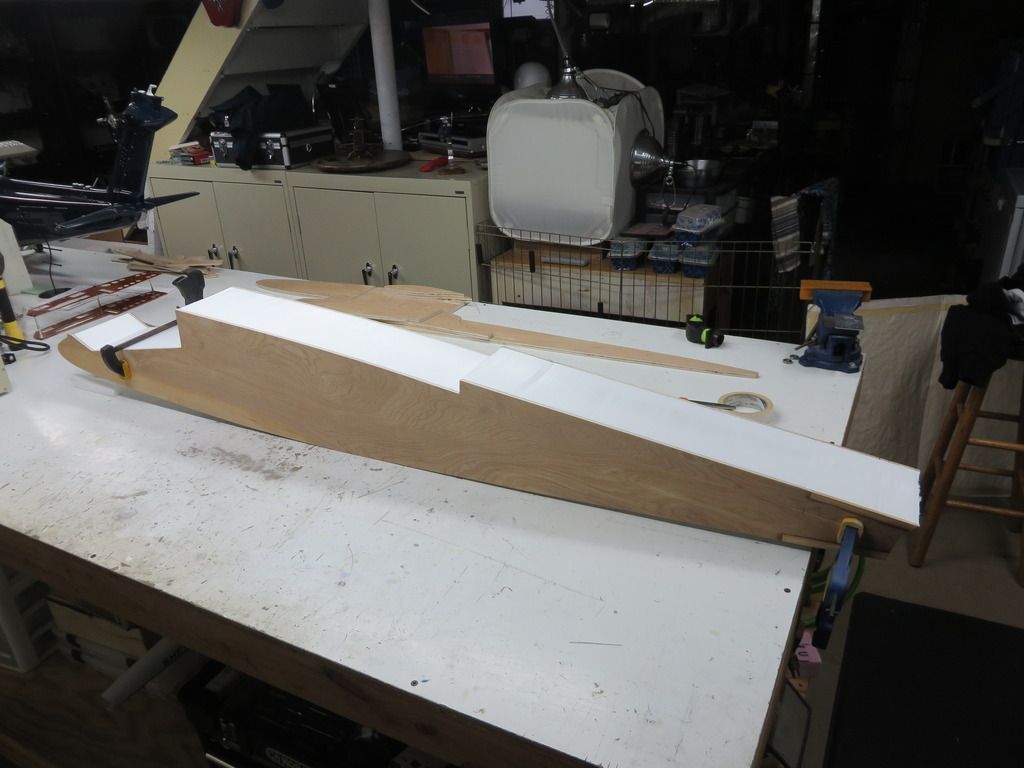

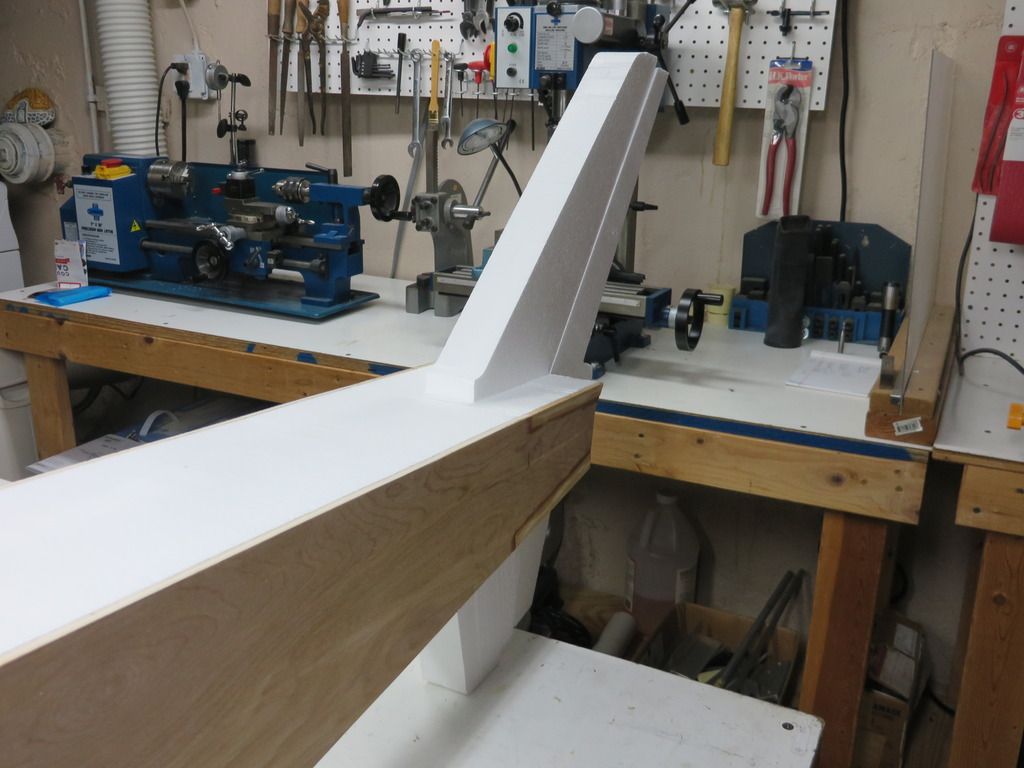

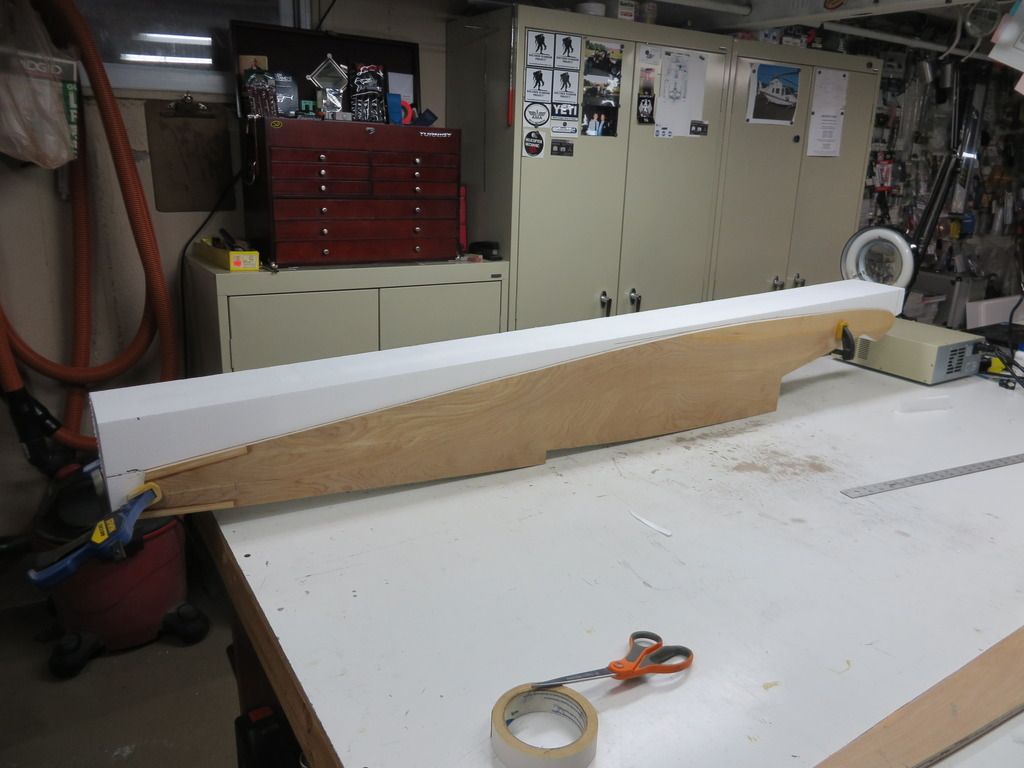

Used a band saw then hand sand to fit.

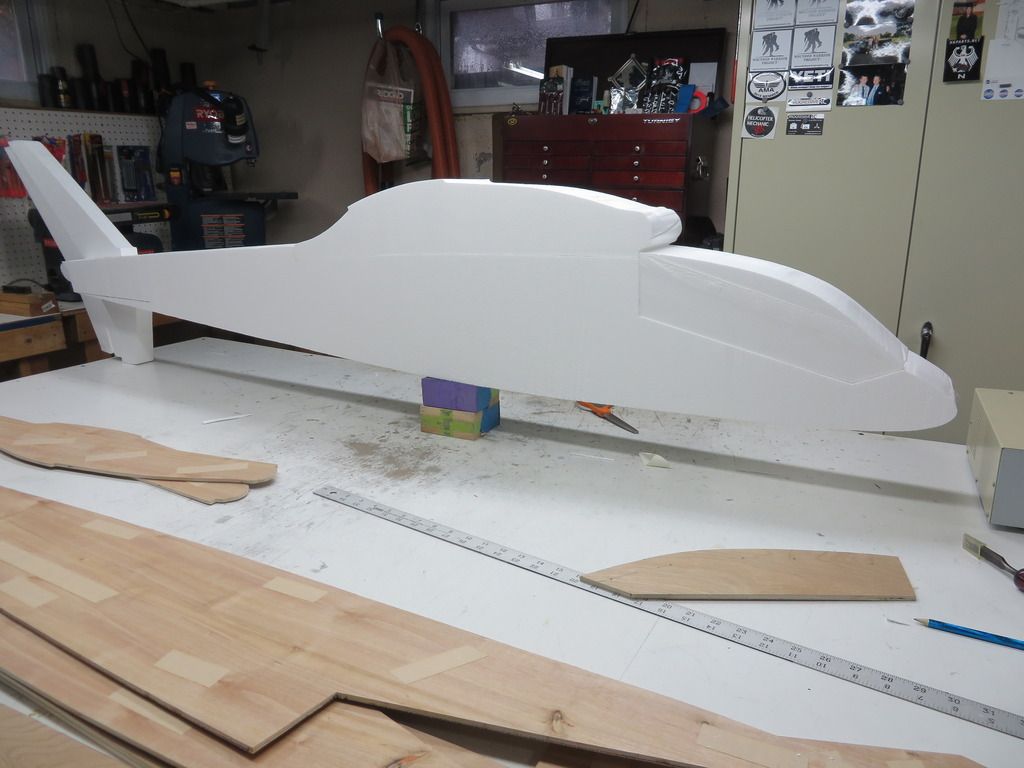

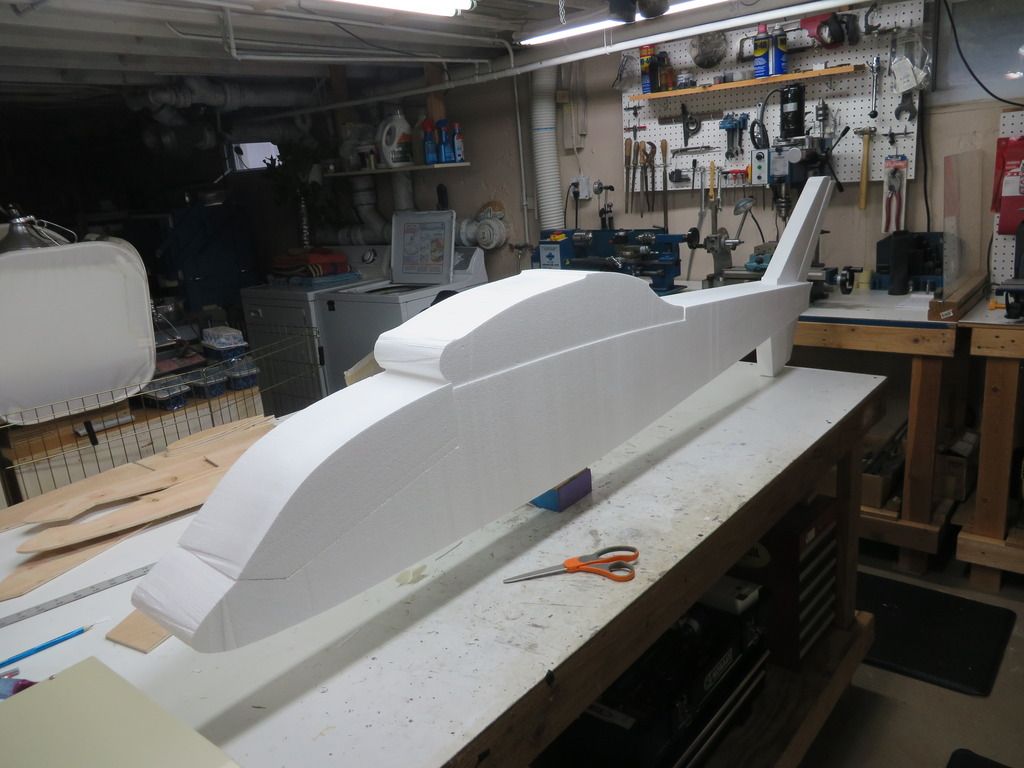

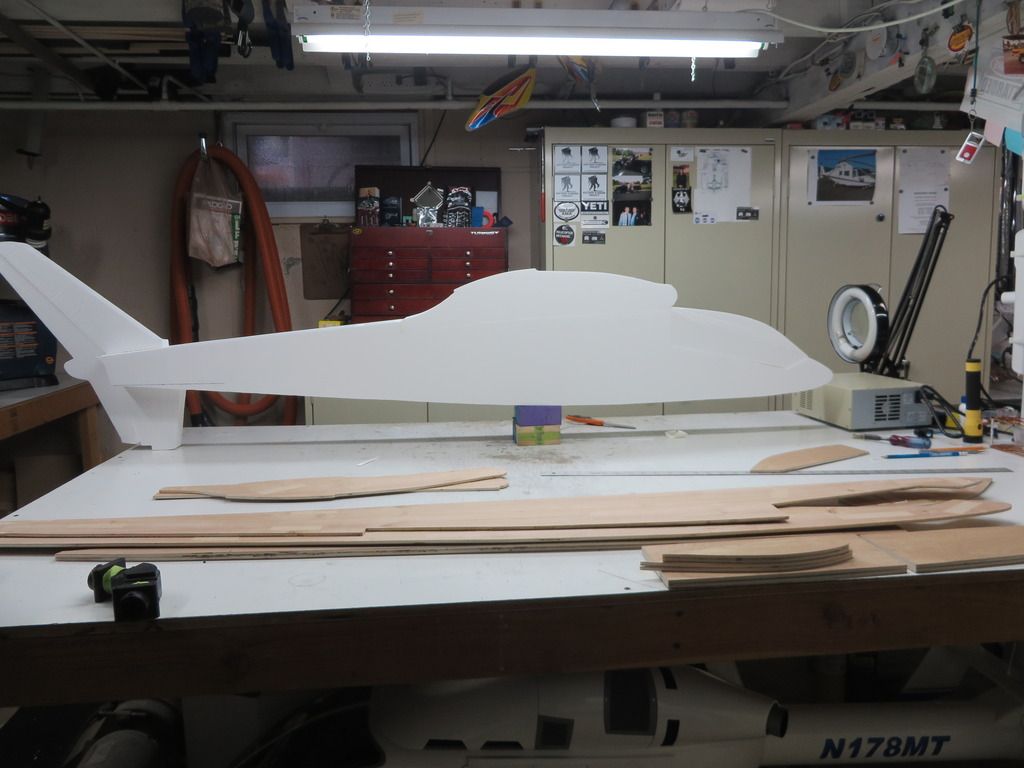

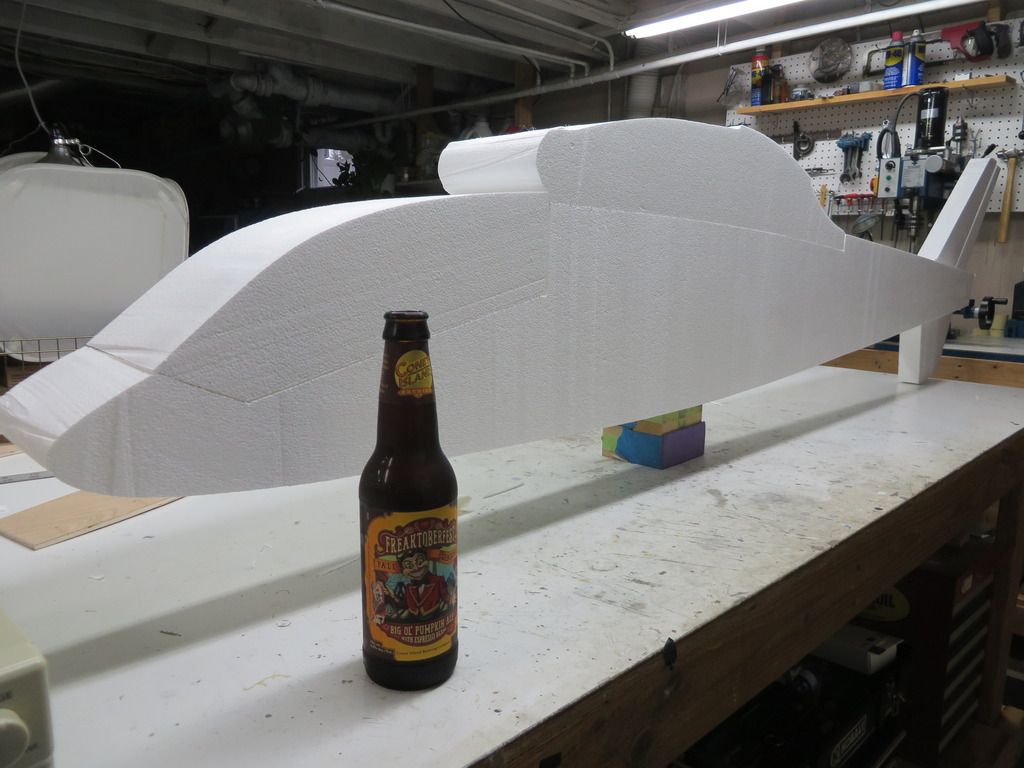

We have a rough cut side profile Sikorsky S-67

Had to sneak in a Freaktoberfest Pumpkin Ale

PM  EMAIL  GALLERY  Attn:RR  Quote
10-28-2015 07:25 PM  3 years agoPost 44
drummerboycody

rrNovice

SPOKANE VALLEY Wa. US

My Posts: All  Forum  Topic

That's awesome

PM  EMAIL  GALLERY  Attn:RR  Quote
10-28-2015 08:25 PM  3 years agoPost 45
buster1

rrKey Veteran

Manhattan, NY

My Posts: All  Forum  Topic

how do you turn that snizzle into fiberglass? Whats the process?

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 12:14 AM  3 years agoPost 46
Mojave

rrElite Veteran

Palos Verdes, Ca. USA

My Posts: All  Forum  Topic

Wow, this is really taking shape, nice job so far!! I gotta get back on my Enstrom project some day...
Barry

All helis and planes have an expiration date stamped on them...you only find it after you crash!!

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 12:37 AM  3 years agoPost 47
Phoenix NOTAR

rrApprentice

Tallahassee, Florida USA

My Posts: All  Forum  Topic

Is it done yet?

Sandy

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 12:57 PM  3 years agoPost 48
bwellmaker

rrKey Veteran

Long Island

My Posts: All  Forum  Topic

how do you turn that snizzle into fiberglass? Whats the process?
Is it done yet?
I was hoping I would walk into the shop one morning and it would be all done.

This will be the plug to make the molds. Once the plug is complete, it will be used as a master to make individual molds. The molds will them be used to make the individual parts of the fuse. Once all the parts are made, they will be put together to make thew complete fuse.

That's the plan any way.

I am not sure just yet exactly how many molds will be needed. I believe 8 pairs for 16 half's and 1 stand alone. The wings and sponsons will be 6 molds alone. The dog house could be 3 or 4 not sure yet.

I have made molds in the past yet not this complex.

B

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 01:56 PM  3 years agoPost 49
doorman

rrProfessor

Sherwood, Arkansas

My Posts: All  Forum  Topic

No Doubt
I am sure you will do just fine... your skills are over the top!!

Stan

AMA 2918-Team Spin Blades,,Castle Creations, Unique Aircraft

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 04:49 PM  3 years agoPost 50
buster1

rrKey Veteran

Manhattan, NY

My Posts: All  Forum  Topic

cool...this is going to be "badass"

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 05:16 PM  3 years agoPost 51
ssmith512

rrKey Veteran

Indianapolis, IN USA

My Posts: All  Forum  Topic

So cool.

Steve

PM  EMAIL  GALLERY  Attn:RR  Quote
10-29-2015 11:40 PM  3 years agoPost 52
bwellmaker

rrKey Veteran

Long Island

My Posts: All  Forum  Topic

Evening,

When I planned the main fuse, I wished to make the dog house and cockpit cowl removable. I felt it would be easier to make them removable from the master, and make the molds separate from the main fuse section.

I installed a couple pins and brass guides to locate the dog house and cowl to the main fuse. This keep them in place while shaping as a unit. Once the shaping is complete, I can mold the smaller pieces.

After installing the pins, I started shaping.

There is a long way to go but off to a fair start.

B

PM  EMAIL  GALLERY  Attn:RR  Quote
10-30-2015 01:50 AM  3 years agoPost 53
206 pilot

rrVeteran

,Long Island,

My Posts: All  Forum  Topic

Yeah it's looking good but no beer while building thats when things go wrong, Jeff when you going to get out so I can see the blowhole fly???? Rich

PM  EMAIL  GALLERY  Attn:RR  Quote
10-30-2015 01:53 AM  3 years agoPost 54
Mojave

rrElite Veteran

Palos Verdes, Ca. USA

My Posts: All  Forum  Topic

Can you use standard polyester vinyl resin on that foam, or do you plan to use epoxy resin?
Barry

All helis and planes have an expiration date stamped on them...you only find it after you crash!!

PM  EMAIL  GALLERY  Attn:RR  Quote
10-31-2015 01:39 AM  3 years agoPost 55
marc28

rrVeteran

new york

My Posts: All  Forum  Topic

Wow , Butch this is gonna be nice

East Coast scale helicopter Field Rep
Vario Team Pilot

PM  EMAIL  GALLERY  Attn:RR  Quote
10-31-2015 03:48 PM  3 years agoPost 56
bwellmaker

rrKey Veteran

Long Island

My Posts: All  Forum  Topic

Going to be a tight fit.

This is not the gear I will be using. This KDE gear is 116 mm where the gear that will be used is 120 mm.

PM  EMAIL  GALLERY  Attn:RR  Quote
10-31-2015 04:55 PM  3 years agoPost 57
R.J.

rrVeteran

SF bay area, CA USA

My Posts: All  Forum  Topic

You can always use a two stage geartrain if it doesn't fit. Looks great so far. Are you going to be using cross sections from plans or shape the fuselage by eye?

PM  EMAIL  GALLERY  Attn:RR  Quote
10-31-2015 05:03 PM  3 years agoPost 58
bwellmaker

rrKey Veteran

Long Island

My Posts: All  Forum  Topic

I have several detail drawings. It being so narrow, I am not making a sub frame to fill in the holes for the plug, but making station templates to check the outside dimension.

The basic shape is really simple. This seamed to be the best way to go then round off the edges, sort of.

B

PM  EMAIL  GALLERY  Attn:RR  Quote
11-01-2015 11:50 PM  3 years agoPost 59
buster1

rrKey Veteran

Manhattan, NY

My Posts: All  Forum  Topic

This helicopter is going to be FAST!!

PM  EMAIL  GALLERY  Attn:RR  Quote
11-03-2015 02:34 PM  3 years agoPost 60
buster1

rrKey Veteran

Manhattan, NY

My Posts: All  Forum  Topic

Rich, I'm going to try and get out to the field this weekend with Butch and fly the 900.

PM  EMAIL  GALLERY  Attn:RR  Quote
